Bonaire Evaporative Cooler ImPress EC Inverter Motor 880W Pinnacle – #SPS6071636SP
$1,090.00 Inc. GST
Genuine Bonaire ImPress 880W EC inverter fan motor (PN SPS6071636SP, motor model 807B8GRVA-A02BL). Suits Bonaire Pinnacle and Silhouette Ultimate evaporative coolers.
*Estimated delivery time after dispatch, not guaranteed. Some metro, regional and remote areas may take longer.

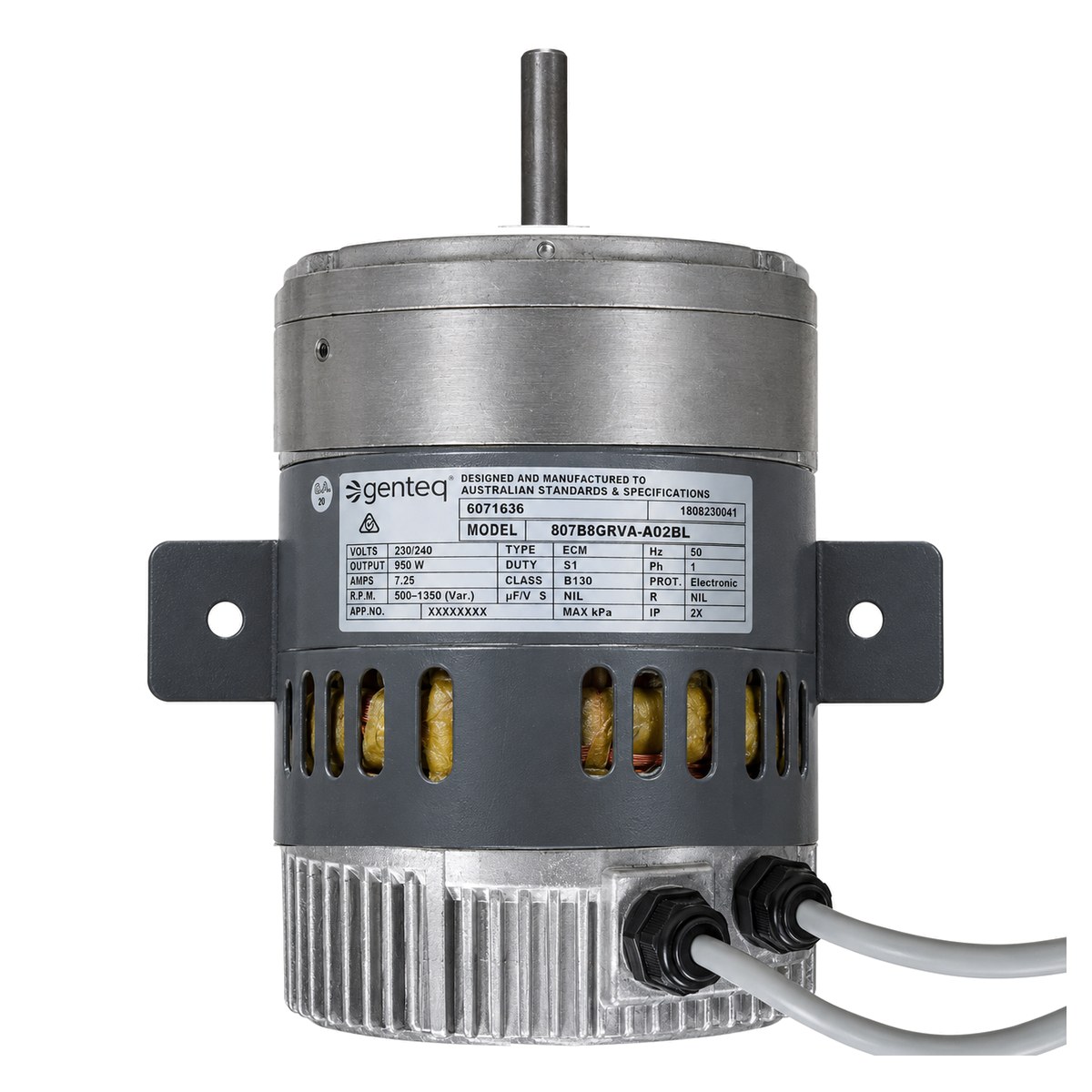

Genuine Bonaire replacement ImPress EC inverter fan motor, part number SPS6071636SP. This is the factory-specified motor for Bonaire’s premium ducted evaporative coolers, a direct replacement for the original ImPress motor.
About the Bonaire ImPress EC Motor
The ImPress is an electronically commutated (EC) motor with its drive electronics built in, which is why it is often called an inverter motor. Compared with a conventional induction motor of similar size it runs cooler and quieter, and Bonaire rates it at up to 40% lower running cost. Fan speed is varied electronically (500–1350 RPM) by the cooler’s controller, giving smooth, quiet airflow at every setting. No run capacitor is required.
Suits These Bonaire Coolers
- Bonaire Pinnacle range: PES, PEM, PEL and PEH models fitted with the ImPress EC motor
- Bonaire Silhouette Ultimate: SCE170, SCE190, SCF170, SCF190

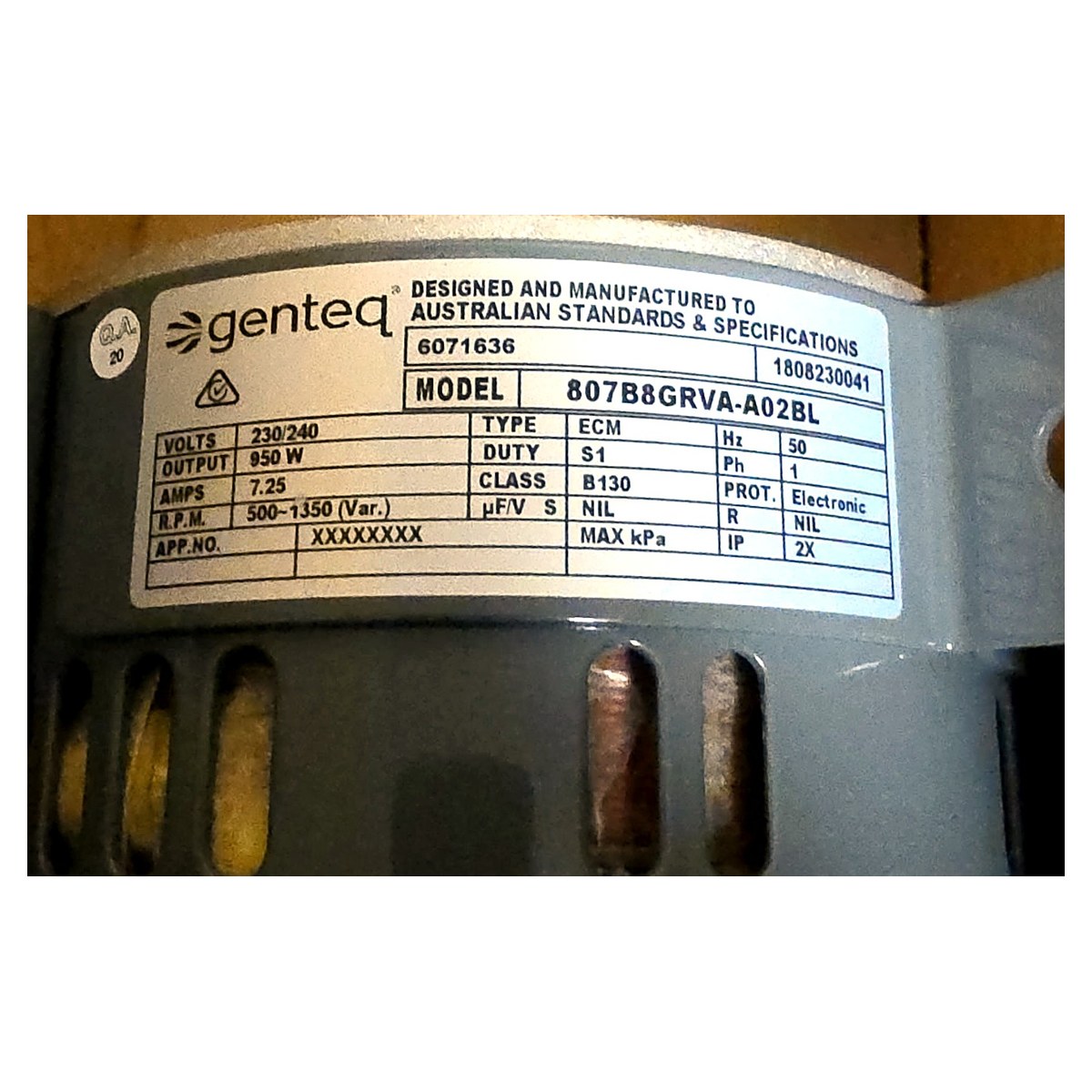

Check before ordering: match the model number on the label of your existing motor – 807B8GRVA-A02BL or 807B8GRVA-A01BL (Genteq ECM). Not sure? Send us a photo of your motor label and we’ll confirm it for you.
Specifications
| Bonaire part number | SPS6071636SP (label: 6071636) |
| Motor model | 807B8GRVA-A02BL (also 807B8GRVA-A01BL) |
| Manufacturer | Genteq, for Bonaire |
| Motor type | ECM – electronically commutated (EC inverter) |
| Rated power (Bonaire) | 880W |
| Motor label output | 950 W |
| Voltage / frequency | 230/240 V AC, 50 Hz, single phase |
| Current | 7.25 A |
| Speed | 500–1350 RPM, variable |
| Duty | S1 (continuous) |
| Insulation class | B (130 °C) |
| Capacitor | None required |
| Protection | Electronic |
| IP rating | IP2X |
| Compliance | RCM marked, made to Australian standards |
Installation
This motor connects to mains power and the cooler’s electronic control system. It must be installed by a qualified, licensed technician.
Related Parts & Information
- Bonaire H2O Optimiser Upgrade Kit for Pinnacle – #SPS6061642SP
- All Bonaire & Celair evaporative cooler motors
- Bonaire Evaporative Cooler Parts Guide
Frequently Asked Questions
Is this a genuine Bonaire part?
Yes. SPS6071636SP is the genuine Bonaire ImPress motor, manufactured by Genteq to Bonaire’s specification.
Why does the label say 950 W when the motor is sold as 880W?
Bonaire rates and packages this motor as 880W. The 950 W figure on the motor label is the motor’s maximum output rating. It is the same part.
Will it fit my cooler?
It suits Bonaire Pinnacle and Silhouette Ultimate coolers fitted with the ImPress EC motor. The easiest check is the model number on your old motor’s label (807B8GRVA-A02BL or 807B8GRVA-A01BL). If in doubt, send us a photo of the label before ordering.
Can I fit it myself?
No. This is a mains-powered EC motor wired to the cooler’s control system and must be fitted by a licensed technician.
| Weight | 10 kg |
|---|---|
| Brand | Bonaire |
| Model | Cooling |
| MPN | SPS6071636SP |
| Motor Model | 807B8GRVA-A02BL |
| Power | 880W |
| Type | EC Inverter Motor |
