Breezair Supercool EXS160-EXS220 Evaporative Cooler Filter Pads 120mm – Set of 4 – #116717

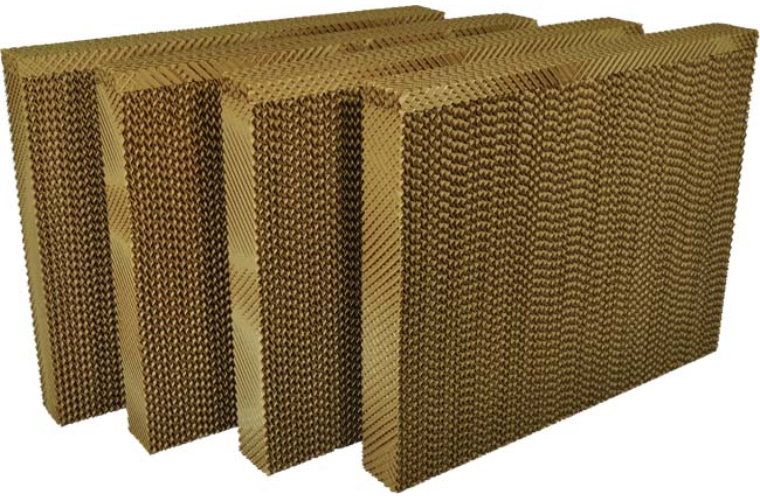

A set of four large 120mm thick cellulose filter pads (Seeley part number 116717) for the Breezair Supercool EXS160, EXS180, EXS200 and EXS220. This part replaces the earlier part numbers 120324 and 120331.

Fits these models

• Breezair Supercool EXS: EXS160, EXS180, EXS200, EXS220

Not sure of your model? It is printed on the data plate inside the cooler cabinet. You can also measure one of your old pads and compare it with the size below.

Specifications

• Seeley part number: 116717
• Pads in the set: 4
• Size: 800 x 635 x 120mm
• Thickness: 120mm
• Material: rigid cellulose (honeycomb) evaporative media

Pins and washers

Pad pins and washers are not included. If your old ones are brittle or missing, add a 16-piece pins and washer set (or the 8-piece set).

Other sizes

For the EXS140, choose the medium EXS set (116495).

When to replace your pads

Replace the pads when they are crumbling, heavily scaled, smell musty or no longer soak up water evenly. Worn pads cut cooling and can let water blow into the ducts. Our evaporative cooler pads guide explains what to look for.

Fitting tip: turn off the power at the isolation switch and turn off the water before you start. Fit the new pads the same way round as the old ones. Work on the roof should be done safely, or by a qualified technician.

Browse by model: EXS Series. See all Breezair, Braemar & Coolair filter pads.
