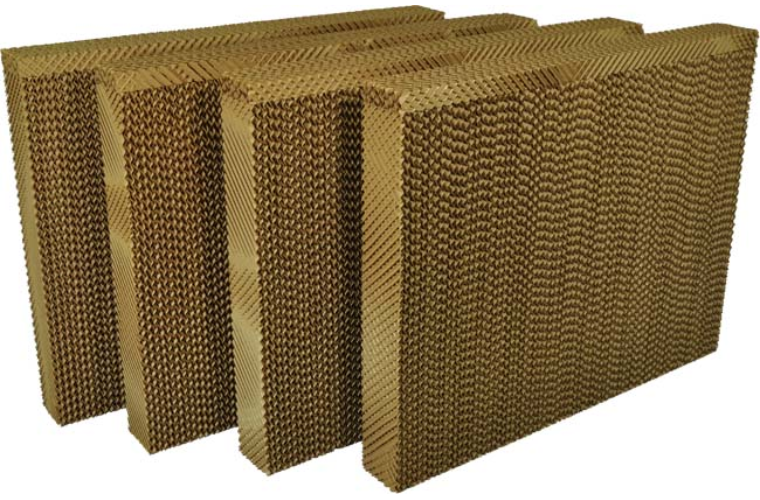

Braemar & Coolair Evaporative Cooler Filter Pads LCB/LCQ/BM/CPL Large – Set of 4 – #114606

A set of four large 90mm cellulose filter pads (Seeley part number 114606) for the bigger Braemar LC and BM series and Coolair CP series evaporative coolers. Braemar and Coolair are both made by Seeley International, so these models share the same pad size.

Fits these models

• Braemar LCA: LCA450, LCA550
• Braemar LCB: LCB450, LCB550
• Braemar LCQ: LCQ450, LCQ550
• Braemar LCQi: LCQi450, LCQi550
• Braemar BM: BM900, BM1150
• Braemar BMQ: BMQ650, BMQ850, BMQ900, BMQ1150
• Coolair CPL: CPL850, CPL1000, CPL1100
• Coolair CPS: CPS850, CPS1100
• Coolair CPQ: CPQ850, CPQ1100
• Coolair CVP: CVP950, CVP1100

Not sure of your model? It is printed on the data plate inside the cooler cabinet. You can also measure one of your old pads and compare it with the size below.

Specifications

• Seeley part number: 114606
• Pads in the set: 4
• Size: 847 x 526 x 90mm
• Thickness: 90mm
• Material: rigid cellulose (honeycomb) evaporative media

Pins and washers

Pad pins and washers are not included. If your old ones are brittle or missing, add a 16-piece pins and washer set (or the 8-piece set).

Other sizes

For the smaller 250/350, BM500/750 and Coolair 450–700 models, choose the medium set (114590).

When to replace your pads

Replace the pads when they are crumbling, heavily scaled, smell musty or no longer soak up water evenly. Worn pads cut cooling and can let water blow into the ducts. Our evaporative cooler pads guide explains what to look for.

Fitting tip: turn off the power at the isolation switch and turn off the water before you start. Fit the new pads the same way round as the old ones. Work on the roof should be done safely, or by a qualified technician.
